This is an exported version of the Jupyter notebook available at my GitHub: https://github.com/Hodapp87/recommender-examples

1. Introduction

The aim of this notebook is to briefly explain recommender systems, show some specific examples of them, and to demonstrate simple implementations of them in Python/NumPy/Pandas.

Recommender systems are quite a broad subject on their own. This notebook focuses on movie recommendations from explicit ratings. That is, it’s focusing on the scenario in which:

• There are a large number of users and a large number of movies.
• Users have supplied ratings on certain movies.
• The movies are different for each user, and the vast majority of users have rated only a tiny fraction of the overall movies.

The goal is to make predictions based on this data, such as:

• How a given user will most likely rate specific movies they have not seen before
• What “new” movies a system might recommended to them

This uses the MovieLens 20M dataset, which (as the name suggests) has 20,000,000 movie ratings. You can download it yourself, and probably should if you wish to run the code. Be forewarned that this code runs quite slowly as I’ve put little effort to optimizing it.

This also focuses on collaborative filtering, one basic form of a recommender system. Broadly, this method predicts unknown ratings by using the similarities between users. (This is in contrast to content-based filtering, which could work with the similarities between movies based on some properties the MovieLens dataset provides for each movie, such as genre. I’ll cover this in another post.)

I refer several times in this notebook to the free textbook Mining of Massive Datasets (hereafter, just “MMDS”), mostly to chapter 9, Recommendation Systems. It’s worth reading if you want to know more.

1.1. Motivation

I try to clearly implement everything I talk about here, and be specific about the method. Some other work I read in this area had me rather frustrated with its tendency to completely ignore implementation details that are both critical and very difficult for an outsider (i.e. me) to articulate questions on, and this is something I try to avoid. I’d like for you to be able to execute it yourself, to build intuition on how the math works, to understand why the code implements the math as it does, and to have good starting points for further research.

In the Slope One explanation, this means I give perhaps a needless amount of detail behind the linear algebra implementation, but maybe some will find it valuable (besides just me when I try to read this code in 3 months).

1.2. Organization

I start out by loading the movielens data, exploring it briefly, and converting it to a form I need.

Following that, I start with a simple (but surprisingly effective) collaborative filtering model, Slope One Predictors. I explain it, implement it with some linear algebra shortcuts, and run it on the data.

I go from here to a slightly more complicated method (the badly-named “SVD” algorithm) that is based on matrix completion using matrix decomposition. I explain this, implement it with gradient-descent, and run it on the data. I also use this as an opportunity to visualize a latent feature space that the model learns.

Near the end, I show how to run the same basic algorithms in scikit-surprise rather than implement them by hand.

2. Dependencies & Setup

Download MovieLens 20M and uncompress it in the local directory. There should be a ml-20m folder.

For Python dependencies, everything I need is imported below: pandas, numpy, matplotlib, and scikit-learn.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scipy.sparse
import sklearn.model_selection

3. Loading data

I don’t explain this in detail. This is just standard calls in Pandas and little details that are boring but essential:

ml = pd.read_csv("ml-20m/ratings.csv",
                 header=0,
                 dtype={"user_id": np.int32, "movie_id": np.int32, "rating": np.float32, "time": np.int64},
                 names=("user_id", "movie_id", "rating", "time"))
# Convert Unix seconds to a Pandas timestamp:
ml["time"] = pd.to_datetime(ml["time"], unit="s")

Below is just to inspect that data appears to be okay:

ml.info()


    RangeIndex: 20000263 entries, 0 to 20000262
    Data columns (total 4 columns):
    user_id     int32
    movie_id    int32
    rating      float32
    time        datetime64[ns]
    dtypes: datetime64[ns](1), float32(1), int32(2)
    memory usage: 381.5 MB

ml.describe()

ml[:10]

max_user  = int(ml["user_id"].max() + 1)
max_movie = int(ml["movie_id"].max() + 1)
max_user, max_movie, max_user * max_movie


    (138494, 131263, 18179137922)


Computing what percent we have of all ‘possible’ ratings (i.e. every single movie & every single user), this data is rather sparse:

print("%.2f%%" % (100 * ml.shape[0] / (max_user * max_movie)))


    0.11%


3.1. Aggregation

This is partly just to explore the data a little, and partly because we need to aggregate some information to use in models later - like the number of ratings for each movie, and each movie’s average rating.

The dataset includes a lot of per-movie information too, but we only bother with the title so far:

names = pd.read_csv(
    "ml-20m/movies.csv", header=0,
    encoding = "ISO-8859-1", index_col=0,
    names=("movie_id", "movie_title"), usecols=[0,1])

movie_group = ml.groupby("movie_id")
movie_stats = names.\
    join(movie_group.size().rename("num_ratings")).\
    join(movie_group.mean()["rating"].rename("avg_rating"))

Sorting by number of ratings and taking the top 25, this looks pretty sensible:

movie_stats.sort_values("num_ratings", ascending=False)[:25]

Prior to anything else, split training/test data out with a specific random seed:

ml_train, ml_test = sklearn.model_selection.train_test_split(ml, test_size=0.25, random_state=12345678)

4. Utility Matrix

The notion of the utility matrix comes up in many methods as a way of expressing the ratings data. For one thing, this opens up the data to an array of linear algebra operations (such as matrix multiplication and SVD) that are useful for transforming the data, meaningful for interpreting it, very readily-available and optimized, and provide a common language for discussing and analyzing what we are actually doing to the data. (For some examples of this, check out section 11.3.2 in MMDS.)

In a utility matrix, each row represents one user, each column represents one item (a movie, in our case), and each element represents a user’s rating of an item. If we have \(n\) users and \(m\) movies, then this is a \(n \times m\) matrix \(U\) for which \(U_{k,i}\) is user \(k\)’s rating for movie \(i\) - assuming we’ve numbered our users and our movies.

Users have typically rated only a fraction of movies, and so most of the elements of this matrix are unknown. Algorithms represent this in different ways; the use of sparse matrices where a value of 0 signifies unknown information is common.

Some algorithms involve constructing the utility matrix explicitly and doing matrix operations directly on it. The approach to Slope One that we do later works somewhat this way. Other methods just use it as a method of analyzing something from a linear algebra standpoint, but dispense with the need for an explicit matrix within the algorithm. The “SVD” method later does this.

We’ll convert to a utility matrix, for which the naive way is creating a dense matrix:

m = np.zeros((max_user, max_movie))
m[df["user_id"], df["movie_id"]] = df["rating"]

…but we’d be dealing with a 18,179,137,922-element matrix that’s a little bit unusable here (at least it is for me since I only have 32 GB RAM), so we’ll use sparse matrices.

def df2mat(df):
    m = scipy.sparse.coo_matrix(
        (df["rating"], (df["user_id"], df["movie_id"])),
        shape=(max_user, max_movie),
        dtype=np.float32).tocsc()
    return m, m > 0

ml_mat_train, ml_mask_train = df2mat(ml_train)
ml_mat_test,  ml_mask_test  = df2mat(ml_test)

We need a mask for some later steps, hence the m > 0 step. Ratings go only from 1 to 5, so values of 0 are automatically unknown/missing data, which fits with how sparse matrices work.

ml_mat_train


    <138494x131263 sparse matrix of type ''
    	with 15000197 stored elements in Compressed Sparse Column format>


To demonstrate that the matrix and dataframe have the same data:

ml_train[:10]

list(ml_train.iloc[:10].rating)


    [4.5, 3.0, 3.0, 4.5, 4.0, 2.5, 5.0, 4.5, 4.0, 2.5]


user_ids = list(ml_train.iloc[:10].user_id)
movie_ids = list(ml_train.iloc[:10].movie_id)
[ml_mat_train[u,i] for u,i in zip(user_ids, movie_ids)]


    [4.5, 3.0, 3.0, 4.5, 4.0, 2.5, 5.0, 4.5, 4.0, 2.5]


Okay, enough of that; we can begin with some actual predictions.

5. Slope One Predictors

We’ll begin with a method of predicting ratings that is wonderfully simple to understand, equally simple to implement, very fast, and surprisingly effective. This method is described in the paper Slope One Predictors for Online Rating-Based Collaborative Filtering. They can be computed given just some arithmetic over the dataset we just loaded. Neither linear algebra nor calculus nor numerical approximation is needed, while all three are needed for the next method.

I’ll give a contrived example below to explain them.

Consider a user Bob. Bob is enthusiastic, but has rather simple tastes: he mostly just watches Clint Eastwood movies. In fact, he’s watched and rated nearly all of them, and basically nothing else.

Now, suppose we want to predict how much Bob will like something completely different and unheard of (to him at least), like… I don’t know… Citizen Kane.

Here’s Slope One in a nutshell:

1. First, find the users who rated both Citizen Kane and any of the Clint Eastwood movies that Bob rated.
2. Now, for each movie that comes up above, compute a deviation which tells us: On average, how differently (i.e. how much higher or lower) did those users rate Citizen Kane compared to this movie? (For instance, we’ll have a number for how Citizen Kane was rated compared to Dirty Harry, and perhaps it’s +0.6 - meaning that on average, users who rated both movies rated Citizen Kane about 0.6 stars above Dirty Harry. We’d have another deviation for Citizen Kane compared to Gran Torino, another for Citizen Kane compared to The Good, the Bad and the Ugly, and so on - for every movie that Bob rated, provided that other users who rated Citizen Kane also rated the movie.)
3. If that deviation between Citizen Kane and Dirty Harry was +0.6, it’s reasonable that adding 0.6 from Bob’s rating on Dirty Harry would give one prediction of how Bob might rate Citizen Kane. We can then generate more predictions based on the ratings he gave the other movies - anything for which we could compute a deviation.
4. To turn this to a single prediction, we could just average all those predictions together.

Note carefully that step 2 is not asking for a difference in average ratings across all users. It is asking for an average of differences in ratings across a specific set of users.

Now, I’m not sure that Bob is an actual user in this dataset, but I will go through these steps with some real data. I arbitrarily chose user 28812:

pd.set_option('display.max_rows', 10)

target_user = 28812
names.merge(ml_train[ml_train.user_id == target_user], right_on="movie_id", left_index=True)

I picked Home Alone, movie ID 586, as the one we want to predict user 28812’s rating on. This isn’t completely arbitrary. I chose it because the testing data contains the actual rating and we can compare against it later.

target_movie = 586
names[names.index == target_movie]

Now, from step #1 and about half of step #2: What users also rated one of the movies that 28812 rated, and rated Home Alone? What were those ratings?

users_df = ml_train[ml_train.user_id == target_user][["movie_id"]]. \
    merge(ml_train, on="movie_id")[["movie_id", "user_id", "rating"]]. \
    merge(ml_train[ml_train.movie_id == target_movie], on="user_id"). \
    drop(["movie_id_y", "time"], axis=1)
# time is irrelevant to us, movie_id_y is just always 3175
users_df

Each row has one user’s ratings of both Home Alone (it’s the rating_y column), and some other movie that 28812 rated (rating_x), so we can easily find the deviation of each individual rating - how much higher they rated Home Alone than the respective movie for movie_id_x:

users_df = users_df.assign(rating_dev = users_df.rating_y - users_df.rating_x)
users_df

…and for the rest of step 2, turn this to an average deviation by grouping by movie ID. For the sake of displaying it, inner join with the dataframe that has movie titles:

pd.set_option('display.max_rows', 20)
rating_dev = users_df.groupby("movie_id_x").mean()["rating_dev"]
names.join(rating_dev, how="inner").sort_values("rating_dev")

The numbers above then tell us that, on average, users who watched both movies rated Home Alone about 1.4 below Shawshank Redemption; likewise, 1.3 below Usual Suspects, and so on, up to 0.53 above Ace Ventura: When Nature Calls and 0.56 above Congo. This fits with what we might expect (setting aside any strong opinions people have about Home Alone or about Jim Carrey’s acting).

For step 3, we can produce a prediction from each deviation above by adding it to each of user 28812’s ratings for the respective movies:

df = ml_train[ml_train.user_id == target_user]. \
    join(rating_dev, on="movie_id")
df = df.assign(rating_adj = df["rating"] + df["rating_dev"])[["user_id", "movie_id", "rating", "rating_adj"]]
df.join(names, on="movie_id").sort_values("movie_title")

That is, every ‘adjusted’ rating above (the rating_adj column) is something like: based on just this movie, what rating would we expect user 28812 to give Home Alone? Produce the final prediction by averaging all these:

df["rating_adj"].mean()


    4.087520122528076


As mentioned above, we also happen to have the user’s actual rating on Home Alone in the test set (i.e. we didn’t train on it), so we can compare here:

ml_test[(ml_test.user_id == target_user) & (ml_test.movie_id == target_movie)]["rating"].iloc[0]


    4.0


That’s quite close - though that may just be luck. It’s hard to say from one point.

5.1. Weighted Slope One

Take a look at the table below. This is a similar aggregation to what we just did to determine average deviation - but this instead counts up the number of ratings that went into each average deviation.

num_ratings = users_df.groupby("movie_id_x").count()["rating_dev"].rename("num_ratings")
names.join(num_ratings, how="inner").sort_values("num_ratings")

We produced an overall average prediction by averaging together all of the average deviations produced from the above ratings. This has a potential problem that can occur. Look at the table above, and note that Forrest Gump has around four times as many ratings as Phenomenon, yet both movies receive the same total number of votes (so to speak).

This isn’t as drastic of an example as possible, but we might like to adjust things so that the amount of weight that’s given to each average deviation depends on how many ratings are in it; presumably, the more ratings that go into that average deviation, the better of an estimate it is.

This is easy to do, luckily:

df = df.join(num_ratings, on="movie_id")
df = df.assign(rating_weighted = df["rating_adj"] * df["num_ratings"])
df

df["rating_weighted"].sum() / df["num_ratings"].sum()


    4.02968199025023


It changes the answer, but only very slightly.

5.2. Linear Algebra Tricks

I said linear algebra isn’t needed, which is true. Everything above was implemented just in operations over Pandas dataframes, albeit with a lot of merges and joins, and it’s probably not very efficient. Someone adept in SQL could probably implement this directly over some database tables in a few queries.

However, the entire Slope One method can be implemented in a faster and concise way with a couple matrix operations. If matrices make your eyes glaze over, you can probably just skip this section.

5.2.1. Short Answer

Let \(U\) be the utility matrix. Let \(M\) be a binary matrix for which \(M_{i,j}=1\) if user \(i\) rated movie \(j\), otherwise 0. Compute the model’s matrices with:

where \(/\) is Hadamard (i.e. elementwise) division, and \(\textrm{max}\) is elementwise maximum with 1. Then, the below gives the prediction for how user \(u\) will rate movie \(j\):

\(D_j\) and \(C_j\) are row \(j\) of \(D\) and \(C\), respectively. \(M_u\) and \(U_u\) are column \(u\) of \(M\) and \(U\), respectively. \(\odot\) is elementwise multiplication.

5.2.2. Long Answer

First, we need to have our data encoded as an \(n \times m\) utility matrix (see a few sections above for the definition of utility matrix). As noted, most elements of this matrix are unknown as users have rated only a fraction of movies. We can represent this with another \(n \times m\) matrix (specifically a binary matrix), a ‘mask’ \(M\) in which \(M_{k,i}\) is 1 if user \(k\) supplied a rating for movie \(i\), and otherwise 0.

5.2.2.1. Deviation Matrix

I mentioned deviation above and gave an informal definition of it. The paper gaves a formal but rather terse definition below of the average deviation of item \(i\) with respect to item \(j\), and I then separate out the summation a little:

where:

• \(u_j\) and \(u_i\) mean: user \(u\)’s ratings for movies \(i\) and \(j\), respectively
• \(u \in S_{j,i}(\chi)\) means: all users \(u\) who, in the dataset we’re training on, provided a rating for both movie \(i\) and movie \(j\)
• \(card\) is the cardinality of that set, i.e. \({card(S_{j,i}(\chi))}\) is how many users rated both \(i\) and \(j\).

5.2.2.2. Cardinality/Counts Matrix

Let’s start with computing \({card(S_{j,i}(\chi))}\), the number of users who rated both movie \(i\) and movie \(j\). Consider column \(i\) of the mask \(M\). For each value in this column, it equals 1 if the respective user rated movie \(i\), or 0 if they did not. Clearly, simply summing up column \(i\) would tell us how many users rated movie \(i\), and the same applies to column \(j\) for movie \(j\).

Now, suppose we take element-wise logical AND of columns \(i\) and \(j\). The resultant column has a 1 only where both corresponding elements were 1 - where a user rated both \(i\) and \(j\). If we sum up this column, we have exactly the number we need: the number of users who rated both \(i\) and \(j\). Some might notice that “elementwise logical AND” is just “elementwise multiplication”, thus “sum of elementwise logical AND” is just “sum of elementwise multiplication”, which is: dot product. That is, \({card(S_{j,i}(\chi))}=M_j \cdot M_i\) if we use \(M_i\) and \(M_j\) for columns \(i\) and \(j\) of \(M\).

However, we’d like to compute deviation as a matrix for all \(i\) and \(j\), so we’ll likewise need \({card(S_{j,i}(\chi))}\) for every single combination of \(i\) and \(j\) - that is, we need a dot product between every single pair of columns from \(M\). This is incidentally just matrix multiplication:

since \(C_{i,j}=card(S_{j,i}(\chi))\) is the dot product of row \(i\) of \(M^T\) - which is column \(i\) of \(M\) - and column \(j\) of \(M\).

That was the first half of what we needed for \(\textrm{dev}_{j,i}\). We still need the other half:

We can apply a similar trick here. Consider first what $\sum_{u \in S_{j,i}(\chi)} u_j$ means: It is the sum of only those ratings of movie \(j\) that were done by a user who also rated movie \(i\). Likewise, \(\sum_{u \in S_{j,i}(\chi)} u_i\) is the sum of only those ratings of movie \(i\) that were done by a user who also rated movie \(j\). (Note the symmetry: it’s over the same set of users, because it’s always the users who rated both \(i\) and \(j\).)

Let’s call the utility matrix \(U\), and use \(U_i\) and \(U_j\) to refer to columns \(i\) and \(j\) of it (just as in \(M\)). \(U_i\) has each rating of movie \(i\), but we want only the sum of the ratings done by a user who also rated movie \(j\). Like before, the dot product of \(U_i\) and \(M_j\) (consider the definition of \(M_j\)) computes this, and so:

and as with \(C\), since we want every pairwise dot product, this summation just equals element \((i,j)\) of \(M^\top U\). The other half of the summation, \(\sum_{u \in S_{j,i}(\chi)} u_i\), equals \(M_j \cdot U_i\), which is just the transpose of this matrix:

So, finally, we can compute an entire deviation matrix at once like:

where \(/\) is Hadamard (i.e. elementwise) division, and \(D_{j,i} = \textrm{dev}_{j,i}\).

By convention and to avoid division by zero, we treat the case where the denominator and numerator are both 0 as just equaling 0. This comes up only where no ratings exist for there to be a deviation - hence the np.maximum(1, counts) below.

5.2.2.3. Prediction

Finally, the paper gives the formula to predict how user \(u\) will rate movie \(j\), and I write this in terms of our matrices:

where \(R_j = {i | i \in S(u), i \ne j, card(S_{j,i}(\chi)) > 0}\), and \(S(u)\) is the set of movies that user \(u\) has rated. To unpack the paper’s somewhat dense notation, the summation is over every movie \(i\) that user \(u\) rated and that at least one other user rated, except movie \(j\).

We can apply the usual trick yet one more time with a little effort. The summation already goes across a row of \(U\) and \(D\) (that is, user \(u\) is held constant), but covers only certain elements. This is equivalent to a dot product with a mask representing \(R_j\). \(M_u\), row \(u\) of the mask, already represents \(S(u)\), and \(R_j\) is just \(S(u)\) with some more elements removed - which we can mostly represent with \(M_u \odot (C_j > 0)\) where \(\odot\) is elementwise product (i.e. Hadamard), \(C_j\) is column/row \(j\) of \(C\) (it’s symmetric), and where we abuse some notation to say that \(C_j > 0\) is a binary vector. Likewise, \(D_j\) is row \(j\) of \(D\). The one correction still required is that we subtract \(u_j\) to cover for the \(i \ne j\) part of \(R_j\). To abuse some more notation:

5.2.2.4. Approximation

The paper also gives a formula that is a suitable approximation for larger data sets:

where \(\bar{u}\) is user \(u\)’s average rating. This doesn’t change the formula much; we can compute \(\bar{u}\) simply as column means of \(U\).

5.3. Implementation

I left out another detail above, which is that the above can’t really be implemented exactly as written on this dataset (though, it works fine for the much smaller ml-100k) because it uses entirely too much memory.

While \(U\) and \(M\) can be sparse matrices, \(C\) and \(D\) sort of must be dense matrices, and for this particular dataset they are a bit too large to work with in memory in this form. Some judicious optimization, attention to datatypes, use of \(C\) and \(D\) being symmetric and skew-symmetric respectively, and care to avoid extra copies could probably work around this - but I don’t do that here.

However, if we look at the \(P(u)_j\) formula above, it refers only to row \(j\) of \(C\) and \(D\) and the formulas for \(C\) and \(D\) make it easy to compute them by row if needed, or by blocks of rows according to what \(u\) and \(j\) we need. This is what I do below.

def slope_one(U, M, users, movies, approx=True):
    M_j = M[:,movies].T.multiply(1)
    U_j = U[:,movies].T
    Cj = M_j.dot(M).toarray()
    MjU = M_j.dot(U).toarray()
    UjM = U_j.dot(M).toarray()
    Dj = (UjM - MjU) / np.maximum(Cj, 1)
    mask = M[users,:].toarray() * (Cj > 0)
    U_u = U[users,:].toarray()
    if approx:
        M_u = M[users,:].toarray()
        P_u_j = U_u.sum(axis=1) / M_u.sum(axis=1) + ((mask * Dj).sum(axis=1) - U_u[0,movies]) / np.maximum(mask.sum(axis=1), 1)
    else:
        P_u_j = ((mask * (U_u + Dj)).sum(axis=1) - U_u[0,movies]) / np.maximum(mask.sum(axis=1), 1)
    return P_u_j

To show that it actually gives the same result as above, and that the approximation produces seemingly no change here:

(slope_one(ml_mat_train, ml_mask_train, [target_user], [target_movie])[0],
 slope_one(ml_mat_train, ml_mask_train, [target_user], [target_movie], approx=False)[0])


    (4.0875210502743862, 4.0875210502743862)


This computes training error on a small part (1%) of the data, since doing it over the entire thing would be horrendously slow:

def slope_one_err(U, M, users, movies, true_ratings):
    # Keep 'users' and 'movies' small (couple hundred maybe)
    p = slope_one(U, M, users, movies)
    d = p - true_ratings
    err_abs = np.abs(d).sum()
    err_sq = np.square(d).sum()
    return err_abs, err_sq

import multiprocessing

count = int(len(ml_train) * 0.01)
idxs = np.random.permutation(len(ml_train))[:count]
# Memory increases linearly with chunk_size:
chunk_size = 200
idxs_split = np.array_split(idxs, count // chunk_size)

def err_part(idxs_part):
    df = ml_train.iloc[idxs_part]
    users = list(df.user_id)
    movies = list(df.movie_id)
    true_ratings = np.array(df.rating)
    err_abs, err_sq = slope_one_err(ml_mat_train, ml_mask_train, users, movies, true_ratings)
    return err_abs, err_sq

with multiprocessing.Pool() as p:
    errs = p.map(err_part, idxs_split)
    err_mae_train = sum([e[0] for e in errs]) / count
    err_rms_train = np.sqrt(sum([e[1] for e in errs]) / count)

and then likewise on 2% of the testing data (it’s a smaller set to start):

import multiprocessing

count = int(len(ml_test) * 0.02)
idxs = np.random.permutation(len(ml_test))[:count]
chunk_size = 200
idxs_split = np.array_split(idxs, count // chunk_size)

def err_part(idxs_part):
    df = ml_test.iloc[idxs_part]
    users = list(df.user_id)
    movies = list(df.movie_id)
    true_ratings = np.array(df.rating)
    err_abs, err_sq = slope_one_err(ml_mat_train, ml_mask_train, users, movies, true_ratings)
    return err_abs, err_sq

with multiprocessing.Pool() as p:
    errs = p.map(err_part, idxs_split)
    err_mae_test = sum([e[0] for e in errs]) / count
    err_rms_test = np.sqrt(sum([e[1] for e in errs]) / count)

# These are used later for comparison:
test_results = [("", "Slope One", err_mae_test, err_rms_test)]

print("Training error: MAE={:.3f},  RMSE={:.3f}".format(err_mae_train, err_rms_train))
print("Testing error:  MAE={:.3f},  RMSE={:.3f}".format(err_mae_test, err_rms_test))


    Training error: MAE=0.640,  RMSE=0.834
    Testing error:  MAE=0.657,  RMSE=0.856


6. “SVD” algorithm

6.1. Model & Background

This basic model is very easy to implement, but the implementation won’t make sense without some more involved derivation.

I’m not sure this method has a clear name. Surprise calls it an SVD algorithm, but it neither uses SVD nor really computes it; it’s just vaguely SVD-like. To confuse matters further, several other algorithms compute similar things and do use SVD, but are completely unrelated.

References on this model are in a few different places:

• SVD in Surprise gives enough formulas to implement from.
• Simon Funk’s post Netflix Update: Try This at Home is an excellent overview of the rationale and of some practical concerns on how to run this on the much larger Netflix dataset (100,000,000 ratings, instead of 100,000).
• The paywalled article Matrix Factorization Techniques for Recommender Systems gives a little background from a higher level.

6.2. Motivation

We again start from the \(n \times m\) utility matrix \(U\). As \(m\) and \(n\) tend to be quite large, \(U\) has a lot of degrees of freedom. If we want to be able to predict anything at all, we must assume some fairly strict constraints - and one form of this is assuming that we don’t really have that many degrees of freedom, and that there are actually some much smaller latent factors controlling everything.

One common form of this is assuming that the rank of matrix \(U\) - its actual dimensionality - is much lower. Let’s say its rank is \(r\). We could then represent \(U\) as the matrix product of smaller matrices, i.e. \(U=P^\top Q\) where \(P\) is a \(r \times n\) matrix and \(Q\) is \(r \times m\).

If we can find dense matrices \(P\) and \(Q\) such that \(P^\top Q\) equals, or approximately equals, \(U\) for the corresponding elements of \(U\) that are known, then \(P^\top Q\) also gives us predictions for the unknown elements of \(U\) - the ratings we don’t know, but want to predict. Of course, \(r\) must be small enough here to prevent overfitting.

(What we’re talking about above is matrix completion using low-rank matrix decomposition/factorization. These are both subjects unto themselves. See the matrix-completion-whirlwind notebook for a much better explanation on that subject, and an implementation of altMinSense/altMinComplete.)

Ordinarily, we’d use something like SVD directly if we wanted to find matrices \(P\) and \(Q\) (or if we wanted to do any of about 15,000 other things, since SVD is basically magical matrix fairy dust). We can’t really do that here due to the fact that large parts of \(U\) are unknown, and in some cases because \(U\) is just too large. One approach for working around this is the UV-decomposition algorithm that section 9.4 of MMDS describes.

What we’ll do below is a similar approach to UV decomposition that follows a common method: define a model, define an error function we want to minimize, find that error function’s gradient with respect to the model’s parameters, and then use gradient-descent to minimize that error function by nudging the parameters in the direction that decreases the error, i.e. the negative of their gradient. (More on this later.)

Matrices \(Q\) and \(P\) have some other neat properties too. Note that \(Q\) has \(m\) columns, each one \(r\)-dimensional - one column per movie. \(P\) has \(n\) columns, each one \(r\)-dimensional - one column per user. In effect, we can look at each column \(i\) of \(Q\) as the coordinates of movie \(i\) in “concept space” or “feature space” - a new \(r\)-dimensional space where each axis corresponds to something that seems to explain ratings. Likewise, we can look at each column \(u\) of \(P\) as how much user \(u\) “belongs” to each axis in concept space. “Feature vectors” is a common term to see.

In that sense, \(P\) and \(Q\) give us a model in which ratings are an interaction between properties of a movie, and a user’s preferences. If we’re using \(U=P^\top Q\) as our model, then every element of \(U\) is just the dot product of the feature vectors of the respective movie and user. That is, if \(p_u\) is column \(u\) of \(P\) and \(q_i\) is column \(i\) of \(Q\):

However, some things aren’t really interactions. Some movies are just (per the ratings) overall better or worse. Some users just tend to rate everything higher or lower. We need some sort of bias built into the model to comprehend this.

Let’s call \(b_i\) the bias for movie \(i\), \(b_u\) the bias for user \(u\), and \(\mu\) the overall average rating. We can just add these into the model:

This is the basic model we’ll implement, and the same one described in the references at the top.

6.3. Prediction & Error Function

More formally, the prediction model is:

where:

• \(u\) is a user
• \(i\) is an item
• \(\hat{r}_{ui}\) is user \(u\)’s predicted rating for item \(i\)
• \(\mu\) is the overall average rating
• our model parameters are:
  • \(b_i\), a per-item deviation for item \(i\);
  • \(b_u\), per-user deviation for user \(u\)
  • \(q_i\) and \(p_u\), feature vectors for item \(i\) and user \(u\), respectively

The error function that we need to minimize is just sum-of-squared error between predicted and actual rating, plus \(L_2\) regularization to prevent the biases and coordinates in “concept space” from becoming too huge: $$E=\sum_{r_{ui} \in R_{\textrm{train}}} \left(r_{ui} - \hat{r}_{ui}\right)^2 + \lambda\left(b_i^2+b_u^2 + \lvert\lvert q_i\rvert\rvert^2 + \lvert\lvert p_u\rvert\rvert^2\right)$$

6.4. Gradients & Gradient-Descent Updates

This error function is easily differentiable with respect to model parameters \(b_i\), \(b_u\), \(q_i\), and \(p_u\), so a normal approach for minimizing it is gradient-descent. Finding gradient with respect to \(b_i\) is straightforward:

Gradient with respect to \(p_u\) proceeds similarly:

Gradient with respect to \(b_u\) is identical form to \(b_i\), and gradient with respect to \(q_i\) is identical form to \(p_u\), except that the variables switch places. The full gradients then have the standard form for gradient descent, i.e. a summation of a gradient term for each individual data point, so they turn easily into update rules for each parameter (which match the ones in the Surprise link) after absorbing the leading 2 into learning rate \(\gamma\) and separating out the summation over each data point. That’s given below, with \(e_{ui}=r_{ui} - \hat{r}_{ui}\):

The code below is a direct implementation of this by simply iteratively applying the above equations for each data point - in other words, stochastic gradient descent.

6.5. Implementation

# Hyperparameters
gamma = 0.002
lambda_ = 0.02
num_epochs = 20
num_factors = 40

class SVDModel(object):
    def __init__(self, num_items, num_users, mean,
                 num_factors = 100, init_variance = 0.1):
        self.mu = mean
        self.num_items = num_items
        self.num_users = num_users
        self.num_factors = num_factors
        #dtype = np.float32
        # Deviations, per-item:
        self.b_i = np.zeros((num_items,), dtype=np.float32)
        # Deviations; per-user:
        self.b_u = np.zeros((num_users,), dtype=np.float32)
        # Factor matrices:
        self.q = (np.random.randn(num_factors, num_items) * init_variance)#.astype(dtype=np.float32)
        self.p = (np.random.randn(num_factors, num_users) * init_variance)#.astype(dtype=np.float32)
        # N.B. row I of q is item I's "concepts", so to speak;
        # column U of p is how much user U belongs to each "concept"

    def predict(self, items, users):
        """Returns rating prediction for specific items and users.

        Parameters:
        items -- 1D array of item IDs
        users -- 1D array of user IDs (same length as :items:)

        Returns:
        ratings -- 1D array of predicted ratings (same length as :items:)
        """
        # Note that we don't multiply p & q like matrices here,
        # but rather, we just do row-by-row dot products.
        # Matrix multiply would give us every combination of item and user,
        # which isn't what we want.
        return self.mu + \
               self.b_i[items] + \
               self.b_u[users] + \
               (self.q[:, items] * self.p[:, users]).sum(axis=0)

    def error(self, items, users, ratings, batch_size=256):
        """Predicts over the given items and users, compares with the correct
        ratings, and returns RMSE and MAE.

        Parameters:
        items -- 1D array of item IDs
        users -- 1D array of user IDs (same length as :items:)
        ratings -- 1D array of 'correct' item ratings (same length as :items:)

        Returns:
        rmse, mae -- Scalars for RMS error and mean absolute error
        """
        sqerr = 0
        abserr = 0
        for i0 in range(0, len(items), batch_size):
            i1 = min(i0 + batch_size, len(items))
            p = self.predict(items[i0:i1], users[i0:i1])
            d = p - ratings[i0:i1]
            sqerr += np.square(d).sum()
            abserr += np.abs(d).sum()
        rmse = np.sqrt(sqerr / items.size)
        mae = abserr / items.size
        return rmse, mae

    def update_by_gradient(self, i, u, r_ui, lambda_, gamma):
        """Perform a single gradient-descent update."""
        e_ui = r_ui - self.predict(i, u)
        dbi = gamma * (e_ui - lambda_ * self.b_u[u])
        dbu = gamma * (e_ui - lambda_ * self.b_i[i])
        dpu = gamma * (e_ui * self.q[:,i] - lambda_ * self.p[:, u])
        dqi = gamma * (e_ui * self.p[:,u] - lambda_ * self.q[:, i])
        self.b_i[i] += dbi
        self.b_u[u] += dbu
        self.p[:,u] += dpu
        self.q[:,i] += dqi

    def train(self, items, users, ratings, gamma = 0.005, lambda_ = 0.02,
              num_epochs=20, epoch_callback=None):
        """Train with stochastic gradient-descent"""
        import sys
        import time
        for epoch in range(num_epochs):
            t0 = time.time()
            total = 0
            for idx in np.random.permutation(len(items)):
                d = 2000000
                if (idx > 0 and idx % d == 0):
                    total += d
                    dt = time.time() - t0
                    rate = total / dt
                    sys.stdout.write("{:.0f}/s ".format(rate))
                i, u, r_ui = items[idx], users[idx], ratings[idx]
                self.update_by_gradient(i, u, r_ui, lambda_, gamma)
            if epoch_callback: epoch_callback(self, epoch, num_epochs)

6.6. Running & Testing

movies_train = ml_train["movie_id"].values
users_train = ml_train["user_id"].values
ratings_train = ml_train["rating"].values
movies_test = ml_test["movie_id"].values
users_test = ml_test["user_id"].values
ratings_test = ml_test["rating"].values
def at_epoch(self, epoch, num_epochs):
    train_rmse, train_mae = self.error(movies_train, users_train, ratings_train)
    test_rmse, test_mae = self.error(movies_test, users_test, ratings_test)
    np.savez_compressed("svd{}".format(num_factors),
                        (self.b_i, self.b_u, self.p, self.q))
    print()
    print("Epoch {:02d}/{}; Training: MAE={:.3f} RMSE={:.3f}, Testing: MAE={:.3f} RMSE={:.3f}".format(epoch + 1, num_epochs, train_mae, train_rmse, test_mae, test_rmse))

svd40 = SVDModel(max_movie, max_user, ml["rating"].mean(), num_factors=num_factors)
svd40.train(movies_train, users_train, ratings_train, epoch_callback=at_epoch)


    6982/s 8928/s 10378/s 12877/s 15290/s 11574/s 13230/s
    Epoch 01/20; Training: MAE=0.674 RMSE=0.874, Testing: MAE=0.677 RMSE=0.879
    4700/s 8568/s 7968/s 10415/s 12948/s 13004/s 13892/s
    Epoch 02/20; Training: MAE=0.663 RMSE=0.861, Testing: MAE=0.668 RMSE=0.868
    54791/s 27541/s 15835/s 18596/s 22733/s 20542/s 22865/s
    Epoch 03/20; Training: MAE=0.657 RMSE=0.854, Testing: MAE=0.663 RMSE=0.863
    158927/s 15544/s 12845/s 12975/s 14161/s 16439/s 12474/s
    Epoch 04/20; Training: MAE=0.649 RMSE=0.845, Testing: MAE=0.657 RMSE=0.856
    3802/s 7361/s 8315/s 10317/s 11895/s 13779/s 13265/s
    Epoch 05/20; Training: MAE=0.640 RMSE=0.834, Testing: MAE=0.649 RMSE=0.847
    12472/s 18866/s 23647/s 27791/s 16208/s 12369/s 13389/s
    Epoch 06/20; Training: MAE=0.632 RMSE=0.824, Testing: MAE=0.643 RMSE=0.840
    28805/s 19738/s 20180/s 17857/s 16249/s 13536/s 13394/s
    Epoch 07/20; Training: MAE=0.624 RMSE=0.814, Testing: MAE=0.638 RMSE=0.833
    24548/s 44734/s 14160/s 10858/s 10926/s 10766/s 12496/s
    Epoch 08/20; Training: MAE=0.616 RMSE=0.804, Testing: MAE=0.632 RMSE=0.826
    9315/s 10221/s 14190/s 14990/s 10299/s 11436/s 13198/s
    Epoch 09/20; Training: MAE=0.609 RMSE=0.795, Testing: MAE=0.627 RMSE=0.820
    24830/s 34767/s 15151/s 11897/s 9766/s 11708/s 13273/s
    Epoch 10/20; Training: MAE=0.602 RMSE=0.786, Testing: MAE=0.623 RMSE=0.815
    47355/s 50678/s 44354/s 19882/s 13230/s 13775/s 12847/s
    Epoch 11/20; Training: MAE=0.595 RMSE=0.777, Testing: MAE=0.619 RMSE=0.810
    11881/s 15645/s 9316/s 11492/s 14085/s 13671/s 12256/s
    Epoch 12/20; Training: MAE=0.589 RMSE=0.768, Testing: MAE=0.615 RMSE=0.806
    17096/s 19543/s 24912/s 15852/s 16939/s 17755/s 13660/s
    Epoch 13/20; Training: MAE=0.582 RMSE=0.760, Testing: MAE=0.612 RMSE=0.802
    11735/s 23142/s 33466/s 41941/s 16498/s 18736/s 18874/s
    Epoch 14/20; Training: MAE=0.577 RMSE=0.753, Testing: MAE=0.610 RMSE=0.799
    3747/s 7109/s 9396/s 9294/s 10428/s 11155/s 12633/s
    Epoch 15/20; Training: MAE=0.572 RMSE=0.746, Testing: MAE=0.607 RMSE=0.796
    91776/s 15892/s 12027/s 15984/s 14365/s 11740/s 12474/s
    Epoch 16/20; Training: MAE=0.567 RMSE=0.740, Testing: MAE=0.606 RMSE=0.794
    17725/s 15693/s 15148/s 13012/s 15547/s 14170/s 14859/s
    Epoch 17/20; Training: MAE=0.562 RMSE=0.733, Testing: MAE=0.604 RMSE=0.792
    7750/s 11820/s 10883/s 10344/s 12010/s 12167/s 12403/s
    Epoch 18/20; Training: MAE=0.557 RMSE=0.727, Testing: MAE=0.602 RMSE=0.790
    15722/s 11371/s 16980/s 13979/s 15011/s 15340/s 17009/s
    Epoch 19/20; Training: MAE=0.553 RMSE=0.722, Testing: MAE=0.601 RMSE=0.789
    52078/s 18671/s 9292/s 11493/s 12515/s 11760/s 13039/s
    Epoch 20/20; Training: MAE=0.549 RMSE=0.717, Testing: MAE=0.600 RMSE=0.787


test_rmse, test_mae = svd40.error(movies_test, users_test, ratings_test)
test_results.append(("", "SVD", test_mae, test_rmse))

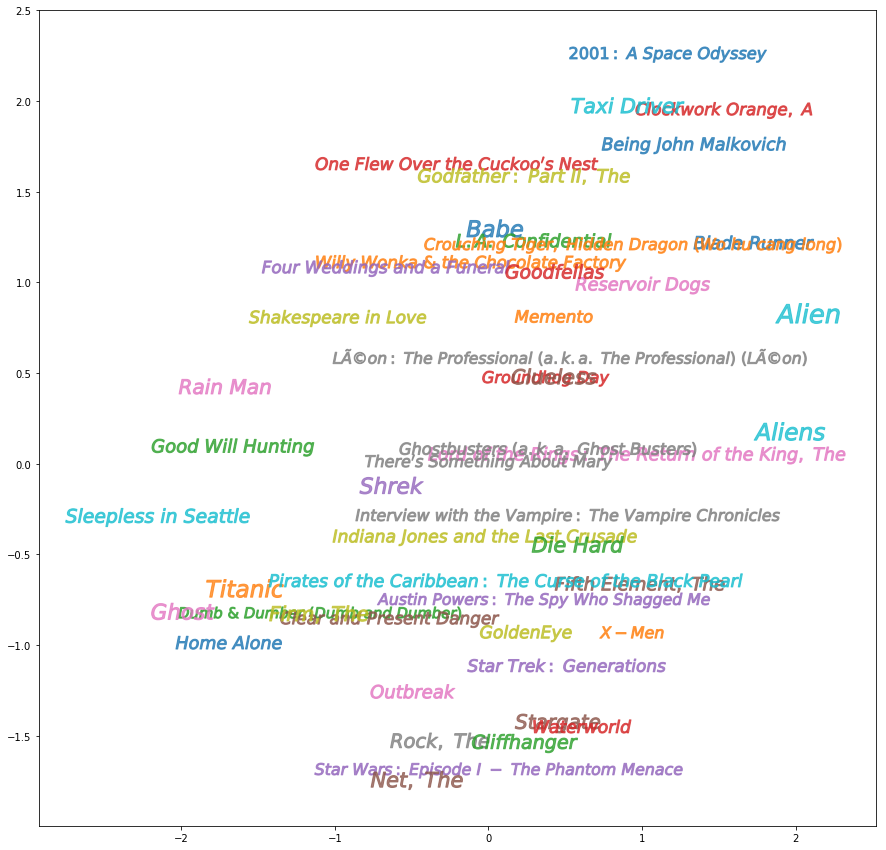

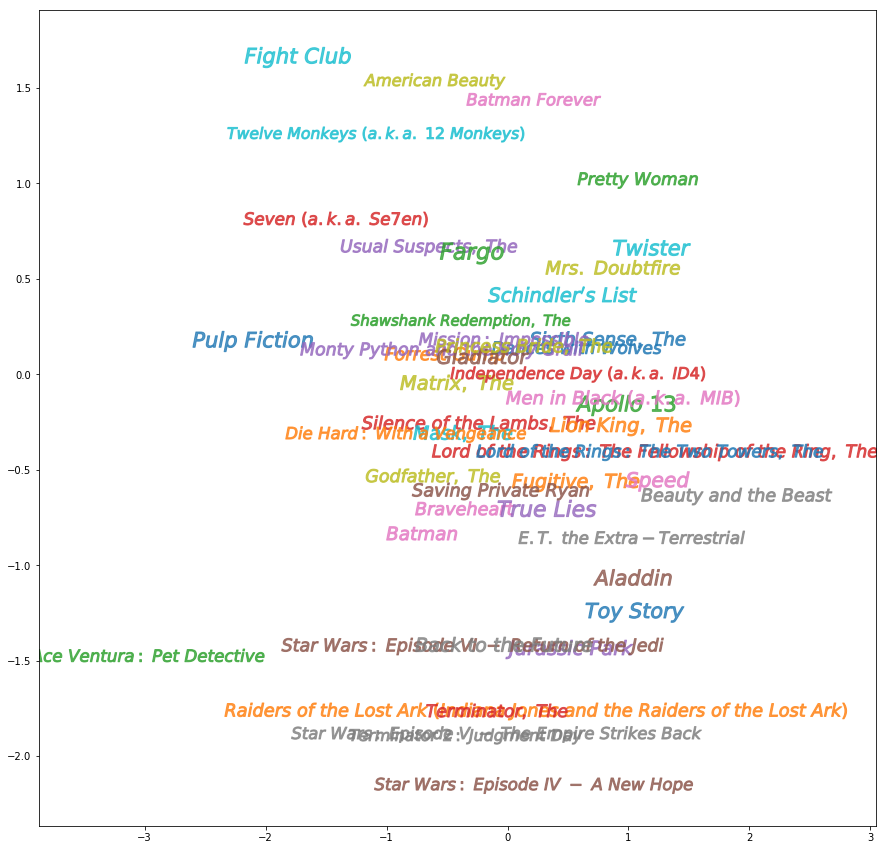

6.7. Visualization of Latent Space

I mentioned somewhere in here that this is a latent-factor model. The latent space (or concept space) that the model learned is useful as a sort of lossy compression of all those movie ratings into a much lower-dimensional space. It’s probably useful for other things too. That lossy compression usually isn’t just a fluke - it may have extracted something that’s interesting on its own.

The 40-dimensional space above might be a bit unruly to work with, but we can easily train on something lower, like a 4-dimensional space. We can then pick a few dimensions, and visualize where movies fit in this space.

svd4 = SVDModel(max_movie, max_user, ml["rating"].mean(), 4)
svd4.train(ml_train["movie_id"].values, ml_train["user_id"].values, ml_train["rating"].values, epoch_callback=at_epoch)


    48199/s 33520/s 16937/s 13842/s 13607/s 15574/s 15431/s
    Epoch 01/20; Training: MAE=0.674 RMSE=0.875, Testing: MAE=0.677 RMSE=0.878
    25537/s 28976/s 36900/s 32309/s 10572/s 11244/s 12795/s
    Epoch 02/20; Training: MAE=0.664 RMSE=0.864, Testing: MAE=0.668 RMSE=0.868
    8542/s 12942/s 15965/s 15776/s 17190/s 17548/s 14876/s
    Epoch 03/20; Training: MAE=0.660 RMSE=0.858, Testing: MAE=0.664 RMSE=0.864
    5518/s 10199/s 13726/s 17042/s 18348/s 19738/s 14963/s
    Epoch 04/20; Training: MAE=0.657 RMSE=0.855, Testing: MAE=0.662 RMSE=0.861
    5054/s 9553/s 9207/s 11690/s 13277/s 13392/s 12950/s
    Epoch 05/20; Training: MAE=0.653 RMSE=0.850, Testing: MAE=0.658 RMSE=0.857
    728000/s 122777/s 15040/s 12364/s 11021/s 12142/s 12965/s
    Epoch 06/20; Training: MAE=0.645 RMSE=0.840, Testing: MAE=0.651 RMSE=0.849
    249831/s 32548/s 23093/s 24179/s 26070/s 27337/s 25700/s
    Epoch 07/20; Training: MAE=0.637 RMSE=0.831, Testing: MAE=0.645 RMSE=0.842
    77391/s 68985/s 15251/s 19532/s 20113/s 14211/s 13467/s
    Epoch 08/20; Training: MAE=0.631 RMSE=0.824, Testing: MAE=0.640 RMSE=0.836
    47346/s 16669/s 18279/s 13423/s 13594/s 16229/s 15855/s
    Epoch 09/20; Training: MAE=0.626 RMSE=0.817, Testing: MAE=0.636 RMSE=0.831
    8617/s 12683/s 13976/s 16825/s 19937/s 20210/s 19766/s
    Epoch 10/20; Training: MAE=0.621 RMSE=0.811, Testing: MAE=0.632 RMSE=0.826
    34749/s 46486/s 37026/s 27497/s 17555/s 20550/s 20926/s
    Epoch 11/20; Training: MAE=0.617 RMSE=0.806, Testing: MAE=0.629 RMSE=0.823
    8388/s 7930/s 8513/s 11249/s 13937/s 12245/s 13965/s
    Epoch 12/20; Training: MAE=0.614 RMSE=0.802, Testing: MAE=0.627 RMSE=0.820
    19899/s 7303/s 8950/s 10936/s 11717/s 13839/s 13401/s
    Epoch 13/20; Training: MAE=0.611 RMSE=0.798, Testing: MAE=0.625 RMSE=0.817
    144779/s 13374/s 11266/s 14888/s 14422/s 13258/s 12869/s
    Epoch 14/20; Training: MAE=0.609 RMSE=0.795, Testing: MAE=0.623 RMSE=0.815
    6578/s 11250/s 15117/s 12955/s 11470/s 13386/s 13040/s
    Epoch 15/20; Training: MAE=0.607 RMSE=0.792, Testing: MAE=0.622 RMSE=0.814
    23450/s 9245/s 11068/s 13315/s 14820/s 16872/s 17089/s
    Epoch 16/20; Training: MAE=0.605 RMSE=0.790, Testing: MAE=0.621 RMSE=0.812
    9460/s 10075/s 12410/s 13820/s 14344/s 16810/s 12759/s
    Epoch 17/20; Training: MAE=0.603 RMSE=0.788, Testing: MAE=0.620 RMSE=0.811
    558034/s 61794/s 50021/s 66589/s 14986/s 16479/s 17602/s
    Epoch 18/20; Training: MAE=0.602 RMSE=0.786, Testing: MAE=0.619 RMSE=0.810
    17841/s 11675/s 15336/s 14454/s 16483/s 18249/s 14615/s
    Epoch 19/20; Training: MAE=0.600 RMSE=0.784, Testing: MAE=0.618 RMSE=0.809
    6090/s 11341/s 15532/s 18298/s 17158/s 14908/s 16898/s
    Epoch 20/20; Training: MAE=0.599 RMSE=0.783, Testing: MAE=0.618 RMSE=0.809


To limit the data, we can use just the top movies (by number of ratings):

top = movie_stats.sort_values("num_ratings", ascending=False)[:100]
ids_top = top.index.values

factors = svd4.q[:,ids_top].T
means, stds = factors.mean(axis=0), factors.std(axis=0)
factors[:] = (factors - means) / stds

So, here are the top 100 movies when plotted in the first two dimensions of the concept space:

plt.figure(figsize=(15,15))
markers = ["$ {} $".format("\ ".join(m.split(" ")[:-1])) for m in top["movie_title"][:50]]
for i,item in enumerate(factors[:50,:]):
    l = len(markers[i])
    plt.scatter(item[0], item[1], marker = markers[i], alpha=0.75, s = 50 * (l**2))
plt.show()

And here are the other two:

plt.figure(figsize=(15,15))
markers = ["$ {} $".format("\ ".join(m.split(" ")[:-1])) for m in top["movie_title"][50:]]
for i,item in enumerate(factors[50:,:]):
    l = len(markers[i])
    plt.scatter(item[2], item[3], marker = markers[i], alpha=0.75, s = 50 * (l**2))
plt.show()

Below is another way of visualizing. Neither the code nor the result are very pretty, but it divides the entire latent space into a 2D grid, identifies the top few movies (ranked by number of ratings) in each grid square, and prints the resultant grid.

def clean_title(s):
    remove = [", The", ", A", ", An"]
    s1 = " ".join(s.split(" ")[:-1])
    for suffix in remove:
        if s1.endswith(suffix):
            s1 = s1[:-len(suffix)]
    return s1

sorted_num_rating = np.array(np.argsort(movie_stats.sort_values("num_ratings", ascending=False).num_ratings))
sorted_num_rating = sorted_num_rating[sorted_num_rating >= 0]
def latent_factor_grid(latent_space, count=2):
    factors = svd4.q[:2,sorted_num_rating]
    # We've already set stdev in all dimensions to 1, so a multiple of it is okay:
    bin_vals = np.arange(-2, 2, 1/4)
    bins = np.digitize(latent_space, bin_vals).T
    #bins
    # Now: What is the first instance of each bin in each axis?
    # (May make most sense if sorted first by # of ratings)
    n = len(bin_vals)
    first_idxs = np.zeros((n,n), dtype=np.int32)
    first_titles = np.zeros((n,n), dtype=np.object)
    for i in range(n):
        for j in range(n):
            # where is first occurence of bin (i,j)?
            matches = (bins == [i,j]).prod(axis=1)
            first = np.nonzero(matches)[0]
            first_titles[i,j] = ""
            if first.size > 0:
                first_idxs[i,j] = first[0]
                if first[0] > 0:
                    # Could easily modify this to get the 2nd, 3rd, etc.
                    # item of these bins
                    first_titles[i,j] = "; ".join(
                        [clean_title(movie_stats.loc[first[i]].movie_title)
                         for i in range(0,min(count,len(first)))
                         if first[i] in movie_stats.index]
                    )
                    # that final check is needed because (I think)
                    # my SVD matrices are randomly-initialized, and
                    # movie indices with no data (not all IDs are used)
                    # are never updated
            else:
                first_idxs[i,j] = -1
    return pd.DataFrame(first_titles)

pd.set_option('display.max_rows', 500)
latent_factor_grid(svd4.q[:2,:])

Both axes seem to start more on the low-brow side along the top left. There is come clear clustering around certain themes but it’s hard to put clearly to words. The fact that Rocky and Airplane! landed in the same grid square, as did Apollo 13 and Santa Clause, is interesting.

Here is the same thing for the other two dimensions in this latent space:

latent_factor_grid(svd4.q[2:,:])

Some sensible axes seem to form here too. Moving from left to right (i.e. increasing horizontal axis) seems to go from movies with ‘simpler’ themes (I’m not really sure of the right term) to movies that are a bit more cryptic and enigmatic. Moving from the top to bottom (i.e. increasing vertical axis) seems to go from more lighthearted and uplifting movies, to more violent movies, all the way to horror movies.

6.8. Bias

We can also look at the per-movie bias parameters in the model - loosely, how much higher or lower a movie’s rating is, beyond what interactions with user preferences seem to explain. Here are the top 10 and bottom 10; interestingly, while to seems to correlate with the average rating, it doesn’t seem to do so especially strongly.

#bias = movie_stats.assign(bias = svd40.b_i[:-1]).sort_values("bias", ascending=False)
bias = movie_stats.join(pd.Series(svd40.b_i[:-1]).rename("bias")).sort_values("bias", ascending=False).dropna()
bias.iloc[:10]

bias.iloc[:-10:-1]

7. Implementations in scikit-surprise

Surprise contains implementations of many of the same things, so these are tested below. This same dataset is included as a built-in, but for consistency, we may as well load it from our dataframe.

Results below are cross-validated, while our results above aren’t, so comparison may have some noise to it (i.e. if you change the random seed you may see our results perform much better or worse while the Surprise results should be more consistent).

import surprise
from surprise.dataset import Dataset

Note the .iloc[::10] below, which is a quick way to decimate the data by a factor of 10. Surprise seems to be less memory-efficient than my code above (at least, without any tuning whatsoever), so in order to test it I don’t pass in the entire dataset.

reader = surprise.Reader(rating_scale=(1, 5))
data = Dataset.load_from_df(ml[["user_id", "movie_id", "rating"]].iloc[::10], reader)
cv=5
cv_random = surprise.model_selection.cross_validate(surprise.NormalPredictor(), data, cv=cv)
cv_sl1 = surprise.model_selection.cross_validate(surprise.SlopeOne(), data, cv=cv)
cv_svd = surprise.model_selection.cross_validate(surprise.SVD(), data, cv=cv)

8. Overall results

get_record = lambda name, df: \
    ("Surprise", name, df["test_mae"].sum() / cv, df["test_rmse"].sum() / cv)
cv_data_surprise = [
    get_record(name,d) for name,d in [("Random", cv_random), ("Slope One", cv_sl1), ("SVD", cv_svd)]
]
pd.DataFrame.from_records(
    data=test_results + cv_data_surprise,
    columns=("Library", "Algorithm", "MAE (test)", "RMSE (test)"),
)

9. Further Work

All of the code in the notebook above is fairly raw and unoptimized. One could likely produce much better performance with a lower-level and multithreaded implementation, with more optimized matrix routines (perhaps GPU-optimized) with something like Numba, or with a distributed implementation in something like Dask or Spark (via PySpark).

Within recommender systems, this post covered only collaborative filtering. A part 2 post will follow which covers content-based filtering, another broad category of recommender systems.
